Khoom Paub meej: Moulding HTV Silicone Roj Hmab - AS5051
AS5051 yog ib tug tswv cuab ntawm peb lub hom phiaj General Moulding HTV (High-Temperature Vulcanization) Silicone Roj Hmab ntau yam, tshwj xeeb tsim rau ntau yam molding txheej txheem xws li extrusion, hloov, compression molding, thiab calendering. Nws yog tus cwj pwm los ntawm nws cov nag lossis daus kub vulcanized xwm, ua rau nws haum rau ntau hom kev siv.
Extrusion:
Extrusion yog txheej txheem kev tsim khoom tas mus li qhov twg silicone roj hmab yog propelled los ntawm kev tuag thiab tom qab vulcanized. Txoj kev no siv cov ntsia hlau conveying los siv lub siab, homogenize cov khoom, thiab tsim cov extrudate. AS5051 tuaj yeem raug extruded rau ntau yam ntaub ntawv xws li tubing, profiles, cables, ca tapes, thiab round cords.
Compression thiab Hloov Molding:
Compression thiab hloov molding cov tswv yim yog ua hauj lwm los kho AS5051 hauv pwm siv cua sov thiab siab. Cov txheej txheem no tau txais kev pom zoo rau cov khoom siv silicone roj hmab vim lawv cov txiaj ntsig zoo. Lawv xyuas kom meej shaping thiab cov khoom sib xws hauv cov khoom kawg.
Textile Txheej / Calendering:
Moulding HTV Silicone Roj Hmab tuaj yeem siv tau siv cov txheej txheem textile txheej txheej, nrog calendering yog txoj hauv kev zoo tshaj plaws rau cov khoom siv silicone. Cov khoom siv txheej siv rau silicones kuj tuaj yeem hloov kho rau kev ua lwm yam txheej txheej xws li PVC, PU, thiab acrylates tom qab ntxuav kom zoo.
Yam ntxwv:
- Hardness Range: 40-70A
- Kub Resistant
- Translucent
- Kev ua tau zoo heev
- Superior Physical Properties
Txoj Cai Ua Raws Cai:
Cov roj hmab silicone no ua raws li cov qauv tsim los ntawm ROHS, REACH, thiab FDA, kom ntseeg tau tias nws tsim nyog rau kev siv nyob rau hauv ib puag ncig rhiab thiab kev siv.
Moulding HTV Silicone Roj Hmab yog ntau yam kev daws teeb meem uas muab kev ua tau zoo thiab ua raws li kev lag luam cov cai, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau ntau cov ntawv thov molding.
|
Yam khoom |
Chav tsev |
Cov qauv xeem (GB/T) |
TIAB SA 5041 |
TIAB SA 5051 |
TIAB SA 5061 |
TIAB SA 5071 |
|
Qhov tshwm sim |
Translucent |
|||||
|
Kho tus neeg sawv cev |
C-15 |
|||||
|
Kho Mob |
170 degree × 10 min |
|||||
|
Vulcanization ntau npaum |
% |
2.0 |
||||
|
Shore Ib Hardness |
Ntug A |
531.1-2008 |
40±2 |
50±2 |
60±2 |
70±2 |
|
Tensile zog |
MPa |
528-1998 |
7.0 |
7.5 |
8.0 |
7.0 |
|
Tear Strength |
KN / m |
529-2008 |
16 |
20 |
20 |
25 |
|
Elongation |
% |
528-1998 |
750 |
630 |
500 |
400 |
|
Qhov ntom |
g/cm3 |
528-2008 |
1.13- 1.16 |
1.15- 1.19 |
1.17- 1.23 |
1.18- 1.25 |
|
Compression |
% |
22 teev / 175 degree |
20 |
22 |
22 |
23 |

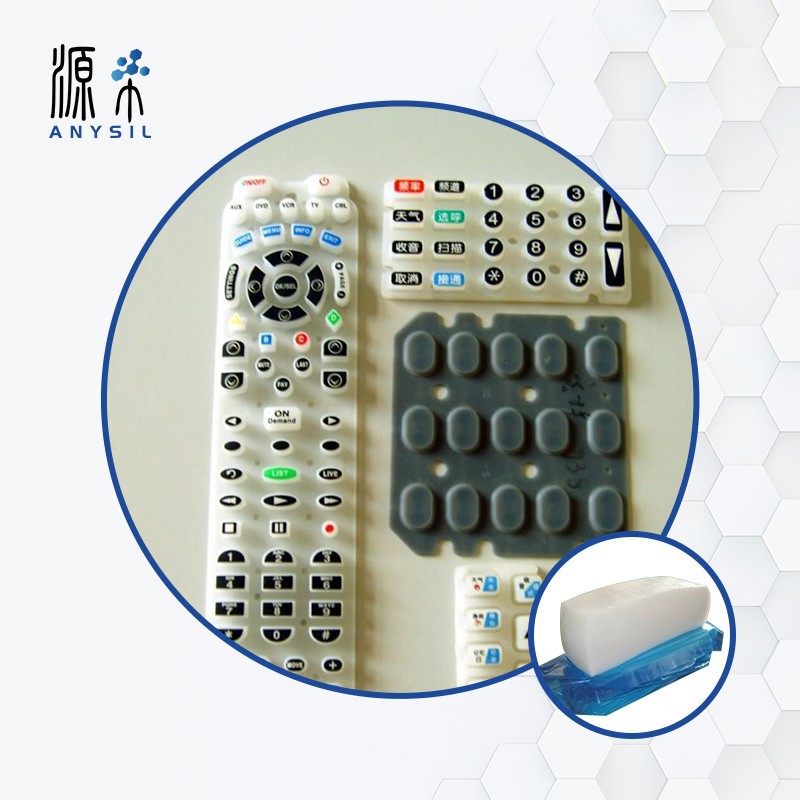

Daim ntawv thov:
- Cov tes tsho tiv thaiv
- Cov khoom siv hluav taws xob
- Daim ntawv thov hu rau zaub mov
- Automotive qhov chaw
- Rollers
- Cov khoom siv hauv tsev
